Quick Release Couplings

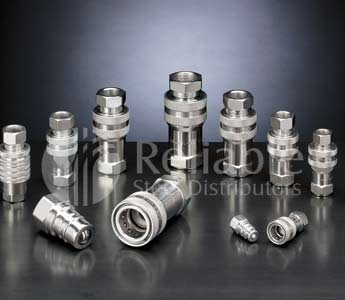

Quick release couplings operate on the Push/Pull concept. When the Adaptor is placed into the coupler, the self-locking structure precisely holds it in place, resulting in a positive and leak-proof connection. This action simultaneously opens the valve and initiates fluid flow. Pull back on the coupler’s sleeve to disconnect; the adaptor ejects and the valves shut off automatically. Valves are available in one-way and two-way sealing configurations.

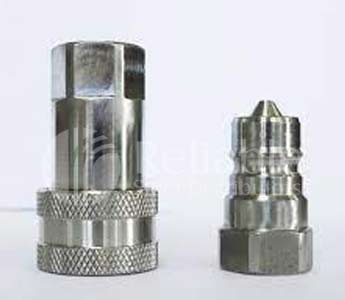

Push & Pull – As Per ISO 7241-A
- The snap-together locking ball technology ensures a secure, rapid connection.
- When the male and female parts are linked, they can rotate even under pressure, preventing torsional stress in the flexible hoses.
- High pressure peaks and pulses can be tolerated.
- To reduce pressure drop, poppet valves contain balanced springs and calibrated oil flow passageways.
- The margins of poppet valve seals are shockproof.

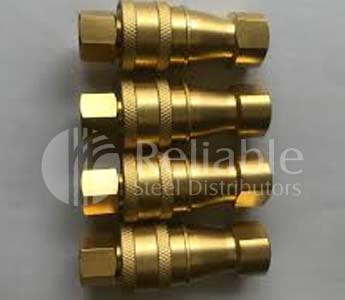

Push & Pull As Per ISO 7241-B
| Size | Diamensions in MM | ||||
| T | L1 | L2 | L | D | W.P |
| 1/8″ | 44 | 33 | 58 | 23 | 300 |
| 1/4″ | 58 | 40 | 72 | 32 | 300 |
| 3/8″ | 66 | 45 | 80 | 38 | 300 |
| 1/2″ | 71 | 50 | 90 | 44 | 250 |
| 3/4″ | 77 | 55 | 98 | 48 | 200 |
| 1″ | 85 | 63 | 112 | 58 | 150 |
| 1 1/4″ | 94 | 65 | 120 | 72 | 150 |
| 1 1/2″ | 113 | 80 | 144 | 89 | 150 |
| 2″ | 127 | 88 | 152 | 105 | 100 |
| 2 1/2″ | 132 | 94 | 158 | 118 | 100 |
| 3″ | 140 | 103 | 180 | 127 | 100 |
