API 5L Grade B Pipe

Home » API 5L Grade B Pipe

API 5L Grade B Seamless Pipe Manufacturer in India

API 5L Grade B PSL1 and PSL 2 Pipe Material Supplier, API 5l Grade B ERW Pipe Weight

ISO-3183 Grade L245 Welded Pipe, API 5L Grade B Line Pipe at best Price in India

API 5L Grade B DSAW Pipe Size Chart and Price List

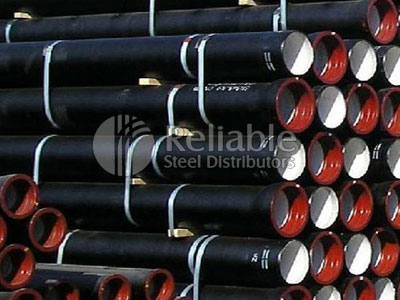

API 5L Grade B PSL 1 / PSL2 Pipe

API 5L Grade B PSL 1 / PSL2 Pipe

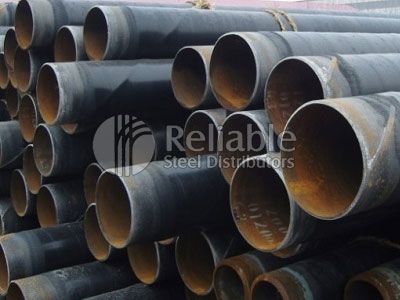

API 5L Grade B Line Pipe

API 5L Grade B Line Pipe

Table of contents :

API 5L Line Pipe Specifications

Reliable Steel Distributor is the renowned supplier of whole range of high-quality and customizable API 5L Line Pipe in India, Malaysia, Indonesia, Singapore & Thailand. We are manufacturing API 5L Grade b Seamless Pipe & API 5l grade b erw pipe with most advanced technology. We export API 5l grade b carbon steel pipe & grade b welded pipe in various countries like Oman, Abu Dhabi, Kuwait, UK, Nigeria, Philippines & etc. Reliable Steel delivers the best quality, cost-effective Grade B DSAW Pipe that meets your specifications.ISO 3183 Grade L245 Welded Pipe is a high yield seamless pipe that is modified to suit offshore structural applications. GR. L245 Welded Pipe is designed to operate in the offshore sector and is intended for mostly use in fixed offshore structures and

Standard API 5L standard Grade B steel grade seamless steel pipe/tube (Specification for Line Pipe – ANSI/API specification 5L – 44th Edition, October 1, 2007)
Sizes Nominal Pipe Size 1/2" to 48 " O.D.
Wall Thickness – Schedule 10 through 160, STD, XS, XXS.
Product Specification Level (PSL) API 5L GrB PSL 2
API 5L GrB PSL 1
Thickness SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
API Grade B Line Pipe Length Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
API 5L GrB Pipes Type Seamless / ERW / Welded / Fabricated / CDW
Origin Indian Origin, Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin, Russian Origin
Applications Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes
Pipe End Plain, Bevel, Screwed, Threaded
Packing API 5L GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Finishes Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled.
Application & uses Suitable for Conveying gas, water, oil, and other liquefied media.
Other manufacturers of API GrB Seamless steel pipe MSL, JSL, ISMT, USL, BAO, Lontrin, SMTM, TNRS, V&M and Wuxi
HS Code
  • 730410 Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel:
  • 730420 Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing:
  • 730431 Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced)
  • 730439 Other Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel
  • 730441 Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced)
  • 730449 Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless
  • 730451 Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced)
  • 730459 Other Tubes, Pipes and Hollow Profiles, of Other Alloy Steel,
  • 730490 Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel
BS EN 10208-2:2009 Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar.
Value added service
  • Heat Treatment
  • Bending
  • Sand Blasting
  • Machining etc.
  • ARO
  • 3LPE
  • Tar Epoxy
  • Draw & Expansion as per required Size & Length
  • Fusion Bond Epoxy
  • Galvanizing
  • Annealed
Technique Hot rolling; cold drawing; NDT test; UT test; Hydrostatic Tester
Testing and Inspection Reports EN 10204 3.1, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate



API 5L Grade B Pipe Supplier in India

API 5L Grade B Pipe Supplier in India

Stockist of Schedule 40 Grade b Pipe, API 5L Grade B SAW Pipe, Sch 80 Grade B Pipe

API 5L Gr B PSL 2 Pipe is steel pipe for pipeline transportation systems in the petroleum and natural gas industries.API 5L GrB Seamless Pipe is applicable for water, onveying gas, and oil.API 5L Grade B Line Pipe Size range is limited only by manufacturer’s capabilities. We supply a full range of API 5L Grade B PSL1 Welded and Gr B ERW Pipe to meet all requirments of our clients.

Reliable Steel distributors are a professional organizer and one-stop-shop Manufacturer of Carbon Steel API 5L Grade B PSL2 Seamless Pipe in india.As a leading Supplier of API 5L Carbon Steel Grade B Pipe in india, all products we supply are conforming to industry-standards or exceeding API, ASTM, ASME, ANSI and other national and international standards.We are not only stand for first class quality and services, but also for prime Exporter of API 5L Grade B PSL1 ERW Pipe in india.Reliable Steel distributors are one of the largest Stockholder and Stockist of Carbon Steel API 5L Grade B PSL2 Seamless Pipe in India.Reliable Steel distributors are authoritative Distributor and Trader of API 5L Grade B PSL1 Seamless Line Pipe in india.

API 5l psl1 & API 5l psl2 corrosion is mainly for wall thinning, pitting rot point pit stress cracks. Mainly grade b saw & line pipe used in the oil or natural gas industries. API 5l Gr B welded pipe Minimum Yield Strength: 30,000 psi & Maximum Yield Strength: None. Reliable Steel Distributor is a well-known name in providing API 5l grade b line pipe & API 5l grade b seamless pipe in countries like Kenya, Russia, Canada, Iran, Iraq & Tanzania.  and demand is increasing day by day because All products we supply are conforming to industry-standards or exceeding API, ASTM, ASME, ANSI, and other national and international standards.

Types of API 5L Grade B Seamless Pipes For Various Industries

API 5L Grade B Line Pipe For Food Processing Industries
API 5L Grade B Line Pipe For Food Processing Industries
API 5l Grade B ERW Pipe For Oil & Gas Industries
API 5L Grade B ERW Pipe For Oil & Gas Industries
API 5L Grade B PSL1 Pipe For Petrochemical Industries
API 5L Grade B PSL1 Pipe For Petrochemical Industries
API 5l Grade B PSL2 Pipe Material For Marine Industries
API 5l Grade B PSL2 Pipe Material For Marine Industries

Types of API 5L Grade B ERW Pipes

API 5L Grade B DSAW Pipe API 5L Grade B SAW
API 5L Grade B Line Pipe API 5L Grade B Carbon Steel Seamless Pipe
API 5L Gr B PSL2 API 5L Grade B Welded Pipe
API 5L Gr B Schedule 40 API 5L Grade B material
SMYS API 5L Grade B API 5L Grade b ERW Pipe
API 5l grade b carbon steel pipe API 5L Grade B PSL1
API 5L Gr B Material API 5L Gr B PSL1
API 5L Gr B Seamless Pipes API 5L Gr B Sch 80



API 5L Grade B PSL1 / PSL2 Pipe Grades:

Grade L175 / A25 175 MPa (25.4 ksi) YS
310 MPa (45.0 ksi) UTS
Grade L210 / A 210 MPa (30.5 ksi) YS
335 MPa (48.6 ksi) UTS
Grade L245 / B 245 MPa (35.5 ksi) YS
415 MPa (60.2 ksi) UTS
Grade L290 / X42 290 MPa (42.1 ksi) YS
415 MPa (60.2 ksi) UTS
Grade L320 / X46 320 MPa (46.4 ksi) YS
435 MPa (63.1 ksi) UTS
Grade L360 / X52 360 MPa (52.2 ksi) YS
460 MPa (66.7 ksi) UTS
Grade L390 / X56 390 MPa (56.6 ksi) YS
490 MPa (71.1 ksi) UTS
Grade L415 / X60 415 MPa (60.2 ksi) YS
520 MPa (75.4 ksi) UTS
Grade L450 / X65 450 MPa (65.3 ksi) YS
535 MPa (77.6 ksi) UTS
Grade L485 / X70 485 MPa (70.3 ksi) YS
570 MPa (82.7 ksi) UTS
Grade L555 / X80
Grade X100 and X120

API 5L Grade B Pipe Weight

Please check below the available API 5L Grade B Seamless Pipe sizes of top manufacturers.There are many manufacturers of API 5L Gr B Pipes worldwide.

JSL MSL BAO ISMT USL Lontrin SMTM TNRS V&M Wuzi
API 5L GR B Pipe Sizes in Inch
1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 1/2 1/2
3/4 3/4 3/4 3/4 – 3/4 3/4 3/4 3/4 3/4
1 1 1 1 – 1 1 1 1 1
1.25 1.25 1.25 1.25 – 1.25 1.25 1.25 1.25 1.25
1.5 1.5 1.5 1.5 – 1.5 1.5 1.5 1.5 1.5
2 2 2 2 – 2 2 2 2 2
2.5 2.5 2.5 2.5 – 2.5 2.5 2.5 2.5 2.5
3 3 3 3 – 3 3 3 3 3
3.5 3.5 3.5 3.5 – 3.5 3.5 3.5 3.5 3.5
4 4 4 4 4 4 4 4 4 4
5 5 5 5 5 5 5 5 5 5
6 6 6 6 6 6 6 6 6 6
8 8 8 8 8 8 8 8 8 8
– 10 10 10 10 10 10 10 10 10
– 12 12 – 12 12 12 12 12 12
– 14 14 – 14 14 14 14 14 14
– 16 16 – – 16 16 16 16 16
– 18 18 – – 18 18 18 18 18
– 20 20 – – 20 20 20 20 20
– – 22 – – 22 22 22 22 22
– – 24 – – 24 24 24 24 24

Above pipe sizes are available in API 5L Gr. B, X42, X46, X52, X56, X60, X65, X70, X80, X100 and X120 material grade.

API 5L ERW Line Pipe Schedule Chart

NPS
(in)		 Outside Diameter
(in)		 API 5l Grade B Welded Pipe Schedule
SCH 10 SCH 20 SCH 30 SCH STD SCH 40 SCH 60 SCH XS SCH 80 SCH 100 SCH 120 SCH 140 SCH 160 SCH XXS
Wall Thickness (in)
1/8 0.405 0.068 0.068 0.095 0.095
1/4 0.540 0.088 0.088 0.119 0.119
3/8 0.675 0.091 0.091 0.126 0.126
1/2 0.840 0.109 0.109 0.147 0.147 0.187 0.294
3/4 1.050 0.113 0.113 0.154 0.154 0.219 0.308
1 1.315 0.133 0.133 0.179 0.179 0.250 0.358
1 1/4 1.660 0.140 0.140 0.191 0.191 0.250 0.382
1 1/2 1.900 0.145 0.145 0.200 0.200 0.281 0.400
2 2.375 0.154 0.154 0.218 0.218 0.344 0.436
2 1/2 2.875 0.203 0.203 0.276 0.276 0.375 0.552
3 3.500 0.216 0.216 0.300 0.300 0.438 0.600
3 1/2 4.000 0.226 0.226 0.318 0.318
4 4.500 0.237 0.237 0.337 0.337 0.438 0.531 0.674
5 5.563 0.258 0.258 0.375 0.375 0.500 0.625 0.750
6 6.625 0.280 0.280 0.432 0.432 0.562 0.719 0.864
8 8.625 0.250 0.277 0.322 0.322 0.406 0.500 0.500 0.594 0.719 0.812 0.906 0.875
10 10.750 0.250 0.307 0.365 0.365 0.500 0.500 0.594 0.719 0.844 1.000 1.125 1.000
12 12.750 0.250 0.330 0.375 0.406 0.562 0.500 0.688 0.844 1.000 1.125 1.312 1.000
14 14.000 0.250 0.312 0.375 0.375 0.438 0.594 0.500 0.750 0.938 1.094 1.250 1.406
16 16.000 0.250 0.312 0.375 0.375 0.500 0.656 0.500 0.844 1.031 1.219 1.438 1.594
18 18.000 0.250 0.312 0.438 0.375 0.562 0.750 0.500 0.938 1.156 1.375 1.562 1.781
20 20.000 0.250 0.375 0.500 0.375 0.594 0.812 0.500 1.031 1.281 1.500 1.750 1.969
22 22.000 0.250 0.375 0.500 0.375 0.875 0.500 1.125 1.375 1.625 1.875 2.125
24 24.000 0.250 0.375 0.562 0.375 0.688 0.969 0.500 1.219 1.531 1.812 2.062 2.344
30 30.000 0.312 0.500 0.625 0.375 0.500
32 32.000 0.312 0.500 0.625 0.375 0.688
34 34.000 0.312 0.500 0.625 0.375 0.688
36 36.000 0.312 0.500 0.625 0.375 0.750
42 42.000 0.500 0.625 0.375 0.750

API 5L Grade B Carbon Steel Pipe Coating

Fusion Bonded Epoxy Coating (FBE Coating) 3LPE Coating
Food Grade Epoxy Coatings Phenolic Epoxy Coating
Any Liquid Epoxy Coating Glass Flake Coatings
Elastomeric Polyurethane Coating PTFE Coating
Halar Coatings Internal & External Coating

API 5L Gr B Seamless Line Pipe Tolerances

Tolerance on dimension

OD Tolerance

WT Tolerance

A, B

X42 ~ X70

D<60.3mm

+0.41/-0.40mm

D<73mm

+20%/-12.5%

D<73mm

+15%/-12.5%

D>=60.3mm

+0.75/-0.40mm

D>=73mm

+15%/-12.5%

D>=73mm

+15%/-12.5%

API 5l Grade B Carbon Steel Pipe Price List

Country Names Latest Price List/ Recent Updated Price List 2018-2019
API 5L GRADE B PSL2 Pipe Price in Iran US $850  –  950  / Metric Ton
API 5L GRADE B ERW Pipe Price in United Arab Emirates AED 3121.84 – 3489.11/ Metric Ton
API 5L GRADE B Welded Pipe Price in South Korea US $850  –  1350  / Metric Ton
API 5L GRADE B PSL2 Pipe Price in Kuwait US $850  –  950  / Metric Ton
API 5L GRADE B Seamless Line Pipe Price in South Africa US $850  –  1100  / Metric Ton
API 5L GRADE B Line Pipe Price in Qatar US $850  –  950  / Metric Ton
API 5L GRADE B DSAW Pipe Price in Bahrain BD 320-358 / Metric Ton
API 5L GRADE B PSL2 Pipe Price in Indonesia US $850  –  950  / Metric Ton
API 5L GRADE B SAW Pipe Price in Oman US $850  –  950  / Metric Ton
ISO-3183 Gr L245 Pipe Price in Taiwan US $850  –  950  / Metric Ton
API 5L GRADE B Carbon Steel Pipe Price in Vietnam US $850  –  1250  / Metric Ton
API 5L GRADE B PSL2 Pipe Price in Egypt US $850  –  1150  / Metric Ton
API 5L Schedule 40 Grade B Pipe Price in Saudi Arabia US $850  –  950  / Metric Ton
API 5L GRADE B PSL2 Pipe Price in India INR 56988-63692/ Metric Ton
API 5L SCH 80 GRADE B PSL2 Pipe Price in USA US $850  –  1050  / Metric Ton
API 5L GRADE B PSL2 Pipe Price in Malaysia US $850  –  990  / Metric Ton

API 5L Grade B Pipe Chemical Composition


PSL1

PSL2

Grade

C (Max.)

Mn(Max.)

P(Max.)

S(Max.)

C (Max.)

Mn(Max.)

P(Max.)

S(Max.)

A

0.22

0.90

0.03

0.03

0.22

1.20

0.025

0.015

B

0.26

1.20

0.03

0.03

0.22

1.30

0.025

0.015

X42

0.26

1.30

0.03

0.03

0.22

1.40

0.025

0.015

X46

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X52

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X56

0.26

1.40

0.03

0.03

0.22

1.40

0.025

0.015

X60

0.26

1.40

0.03

0.03

0.22

1.45

0.025

0.015

X65

0.26

1.45

0.03

0.03

0.22

1.65

0.025

0.015

X70

0.26

1.65

0.03

0.03

0.22

1.85

0.025

0.01

API 5L Grade B Seamless Pipe Mechanical Properties / API 5L Grade B Pipe Yield Strength

Pipe Grade Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 1 Seam of Welded Pipe
Yield Strength a Tensile Strength a Elongation Tensile Strength b
Rt0,5 PSI Min Rm PSI Min (in 2in Af % min) Rm PSI Min
A 30,500 48,600 c 48,600
B 35,500 60,200 c 60,200
X42 42,100 60,200 c 60,200
X46 46,400 63,100 c 63,100
X52 52,200 66,700 c 66,700
X56 56,600 71,100 c 71,100
X60 60,200 75,400 c 75,400
X65 65,300 77,500 c 77,500
X70 70,300 82,700 c 82,700
