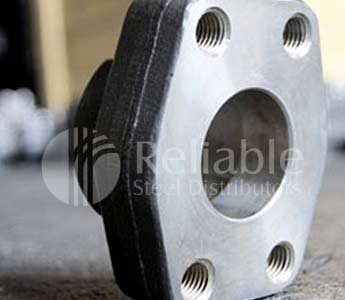

Hydraulic Flanges
| Working Pressure | 250 bar |
| sizes | up to 5 ” NB |
| Series |
|
| Connection Type |
|
| Hydraulic Flanges | Standard | SIZES IN NB | W.P = PSI .SERIES | |
| CETOP Flanges | CETOP RP 63H | 1/4′ NB UP TO 5’NB | 3000 | 6000 |

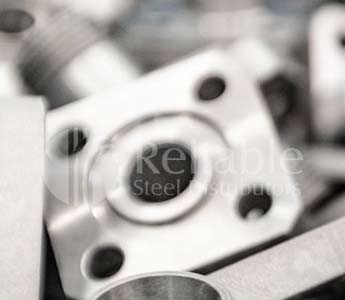

CETOP Flanges
| Working Pressure | 250 bar |
| sizes | up to 5 ” NB |
| Hydraulic Flanges | SIZES IN NB | Standard | W.P = PSI .SERIES | |
| CETOP Flanges | 1/4′ NB UP TO 5’NB | CETOP RP 63H | 3000 | 6000 |

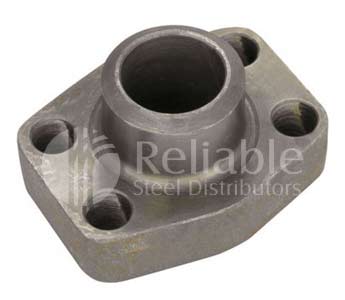

Butt Weld Flanges
- Butt Weld Flanges are only available in ISO 6162 – 3000 psi and 6000 psi series.
- Butt Weld Flanges are employed in hose assemblies where simple removal of pipe is possible in a confined space. Butt Weld Flanges are made of two parts that are connected with a weld nozzle by Allen bolts, nuts, and an O ring seal.
- MOC – Steel, Stainless Steel SAE Butt Weld Flanges are assembled with Split flanges or Mono Flanges or Flat Butt type flanges with tube to weld on both sides with Allen Bolts and Nuts.
