ASME SA / ASTM A53 GR.A Carbon Steel Pipes Exporter in India

What is ASTM A53 Carbon Steel Grade A Pipes ?

ASME SA 53 Carbon Steel Grade A Pipes is a carbon steel alloy, used as structural steel or for low-pressure plumbing. The alloy specifications are set by ASTM International, in specification ASTM A53/A53M.

A53 pipe comes in three types and two grades, A53 Type F, which is longitudinally furnace butt welded or continuous welded (Grade A only), A53 Type E, which is longitudinally electric resistance welded, and A53 Type S, which is seamless pipe, produced by hot working, and possibly cold finishing, the steel. ASTM A53 pipe is sized according to the nominal pipe size (NPS) system. It is commonly available with national pipe thread ends or with plain cut ends. It can be used for steam, water, and air conveyance. It is also weldable and can be used in structural applications.

ASTM A53 Grade A Seamless Pressure Pipe (also known as ASME SA53 Grade A Pipe) are seamless carbon steel pipes used for high tempertaure applications (up to 750 degrees F) in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.

Reliable Steel distributors are by far the most professional Manufacturer of ASTM A53 GR.A Carbon Steel Pipe in india.We have many years of experience in supplying of alloy steel products and now we are leading Supplier of ASTM A53 GR.A Carbon Steel Pipe in india.Reliable Steel distributors are the high-ranking Exporter of ASTM A53 GR.A Carbon Steel Pipe in india.We offer ASTM A53 Carbon Steel Grade A Pipes in customized options, as per our clients’ specifications & requirements.Reliable Steel distributors are one of the fastest growing Stockholder and Stockist of ASTM A53 GR.A Carbon Steel Pipe in India.we are prominent Distributor and Trader of ASTM A53 GR.A Carbon Steel Pipe in india, iraq, iran, kuwait, bahrain, qatar, saudi arabia, uae, malaysia, oman, singapore, vietnam, indonesia, france, united kingdom (UK), colombia, brazil, ecuador, chile, argentina, usa.

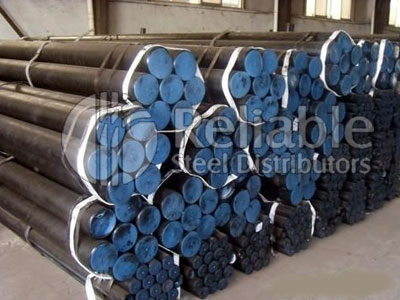

ASME SA 53 Gr A Carbon Steel Seamless Pipe and Tubing Manufacturer in India

ASME SA 53 Gr A Carbon Steel Seamless Pipe and Tubing Manufacturer in India

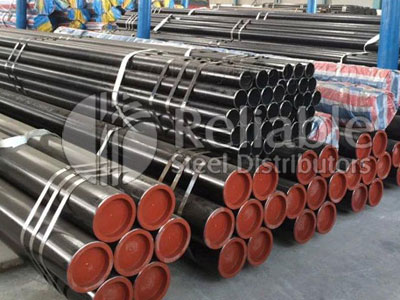

ASTM A53 Gr.A High Temperature Seamless Tube Manufacturer in India

ASTM A53 Gr.A High Temperature Seamless Tube Manufacturer in India

We follow total Quality Management System adhering to stringent processes to ensure that we supply high quality ASME SA / ASTM A53 GR.A Pipes and ASTM A53 Carbon Steel Grade A Tubes at competitive prices.Our name are known for their finest quality, durability, and efficiency in ASME SA 53 Grade A Carbon Steel Pipes, ASME SA 53 Grade A Carbon Steel Tubes.These ASME SA 53 Carbon Steel Gr.A Pipes, ASME SA 53 Carbon Steel Grade A Tubes are used in various industries which include petrochemical, energy, engineering and construction.We understand the varied technical needs of our clients and develop our sourcing of products accordingly to manufacture ASTM A53 Carbon Steel GR.A Pipes, ASTM A53 Grade A Carbon Steel Tubes.These ASTM A53 Grade A Carbon Steel Pipes, ASME SA 53 Carbon Steel Grade A Pipesare manufacture with best finishing and as per the clients specifications.we Supply ASME SA 53 Carbon Steel Gr.A Tubes, ASME SA 53 Carbon Steel Grade A Tubes in India, Kuwait, Oman, Saudi Arabia, uae, oman, singapore, united kingdom countries at market leading prices.

Why Choose Reliable Steel Distributors ?

  • We are dominant ASTM A53 GR.A Carbon Steel Pipe Manufacturers in India
  • We are ISO 9001:2008 Certified ASTM A53 GR.A Carbon Steel Pipe Suppliers in India
  • We are Renowned ASTM A53 GR.A Carbon Steel Pipe Exporters in India
  • We are Supreme ASTM A53 GR.A Carbon Steel Pipe Distributors in India
  • Best Quality ASTM A53 GR.A Carbon Steel Pipe Traders in India
  • Largest ASTM A53 GR.A Carbon Steel Pipe Stockist in India
  • Best Price ASTM A53 GR.A Carbon Steel Pipe Wholesaler in India
  • Well Known Brand of ASTM A53 GR.A Carbon Steel Pipe Importers in India
  • We are 5th Largest ASTM A53 GR.A Carbon Steel Pipe Stockholder in India
  • We are Reputed ASTM A53 GR.A Carbon Steel Pipe Manufacturer in Mumbai, Maharashtra
  • We are Leading ASTM A53 GR.A Carbon Steel Pipe Manufacturers in Rajkot, Gujarat

ASTM A53 GR.A Carbon Steel Seamless Pipe Specification :

Specifications : ASTM A 53, ASME SA 53
Size Range : 1/2” NB to 36” NB
Thickness : 3-12mm
Schedules : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Type : Seamless / ERW / Welded
Length : Min 3 Meters, Max18 Meters, or according to customer’s requirement
Specification for Pipe : Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
End Connections : Plain, Bevel, Screwed, Threaded
Grade : Grade A

ASTM A53 Grade A Carbon Steel Pipe Mechanical Properties :

Grade Mechanical Properties, Min.
Tensile Strength(Mpa) Yield Strength(Mpa)
A 330 205

ASTM A53 Grade A Carbon Steel Seamless Pipe Chemical Composition :

Grade Chemical Composition (%) Max.
C Mn P S Cu Ni Cr Mo V
A 0.25 0.95 0.05 0.045 0.4 0.4 0.4 0.15 0.08

ASTM A53 GR.A Carbon Steel Pipe Application :

ASTM A53 Grade A Carbon Steel Pipe Applications in Food Processing Industries
Food Processing Industries
ASTM A53 Grade A Carbon Steel Pipe Applications in Oil & Gas Industries
Oil & Gas Industries
ASTM A53 Grade A Carbon Steel Pipe Applications in Petrochemical Industries
Petrochemical Industries
ASTM A53 Grade A Carbon Steel Pipe Applications in Marine Industries
Marine Industries

Carbon Steel ASTM A53 Gr A Pipes and Tubes Price in India:

Materials
Price Range
Unit
ASTM A53 GR.A Carbon Steel Pipe
450-750
USD/Ton
ASTM A53 Gr.A Round Hollow Section Carbon Steel Seamless Pipe
500-720
USD/Ton
ASTM A53 Gr.A SCH10,20,30 Seamless/Welded Carbon Steel Pipe/Tube
810-1350
USD/Ton

Types Of ASTM A53 /SA 53 Gr A Carbon Steel Seamless Pipe/Tube :

Carbon Steel A53 Pipes and Tubes Supplier in India
Carbon Steel A53 Pipes and Tubes
ASME SA 53 Grade A Pipes Supplier in India
ASME SA 53 Grade A Pipes
ASTM A53 GR.A Carbon Steel Seamless Pipe Supplier in India
ASTM A53 GR.A Carbon Steel Seamless Pipe
Carbon Steel Welded Pipes & Tubing Supplier in India
Carbon Steel Welded Pipes & Tubing
IBR Certified ASTM A 53 Gr.A Carbon Steel Pipes Supplier in India
IBR Certified ASTM A 53 Gr.A Carbon Steel Pipes
High Quality A53 Grade A Carbon Steel Pipes Supplier in India
High Quality A53 Grade A Carbon Steel Pipes
ASTM A53 GR A Seamless Tubes Supplier in India
ASTM A53 GR A Seamless Tubes
A53 Grade A Line Pipe Seamless Pipe Supplier in India
A53 Grade A Line Pipe Seamless Pipe
A53 Grade A IBR Pipe and Tubing Supplier in India
A53 Grade A IBR Pipe and Tubing
ERW Carbon Welded Pipes and Tubes ASTM A53 Supplier in India
ERW Carbon Welded Pipes and Tubes ASTM A53
ASME SA-53 Gr.A Carbon Steel Tubes Supplier in India
ASME SA-53 Gr.A Carbon Steel Tubes
Gr.A A53 Welded Tube Supplier in India
Gr.A A53 Welded Tube
ASME SA / ASTM A53 Zinc Coated Pipes Supplier in India
ASME SA / ASTM A53 Zinc Coated Pipes
ASTM A53 GR. A Hot-Dipped Pipes Supplier in India
ASTM A53 GR. A Hot-Dipped Pipes
ASTM A53 Grade A Tube Supplier in India
ASTM A53 Grade A Tube
ASTM A53 Grade A Pipes Supplier in India
ASTM A53 Grade A Pipes

ASME SA / ASTM A53 GR.A Seamless Pipes & Tubes Forming processes :

ASTM A53 GR.A Carbon Steel Pipes Uncoiling
Uncoiling
ASTM A53 GR.A Carbon Steel Pipes Leveling
Leveling
ASTM A53 GR.A Carbon Steel Pipes Side Timmer
Side Timmer
ASTM A53 GR.A Carbon Steel Pipes Forming
Forming
ASTM A53 GR.A Carbon Steel Pipes Electric Resistance Welding
Electric Resistance Welding
ASTM A53 GR.A Carbon Steel Pipes Ultrasonic Inspection of Weld Seam
Ultrasonic Inspection of Weld Seam
ASTM A53 GR.A Carbon Steel Pipes Post Annealing
Post Annealing
ASTM A53 GR.A Carbon Steel Pipes Water Cooling
Water Cooling
ASTM A53 GR.A Carbon Steel Pipes Sizing
Sizing
ASTM A53 GR.A Carbon Steel Pipes Flying Cutting
Flying Cutting
ASTM A53 GR.A Carbon Steel Pipes End Facing
End Facing
ASTM A53 GR.A Carbon Steel Pipes Hydrostatic Testing
Hydrostatic Testing
ASTM A53 GR.A Carbon Steel Pipes Ultrasonic Inspection of Full Body
Ultrasonic Inspection of Full Body
ASTM A53 GR.A Carbon Steel Pipes Weighing and Measuring
Weighing and Measuring
ASTM A53 GR.A Carbon Steel Pipes Mill Coating/Marking
Mill Coating/Marking
ASTM A53 GR.A Carbon Steel Pipes Visual & Dimensional Check
Visual & Dimensional Check
ASTM A53 GR.A Carbon Steel Pipes Thread/Coupling
Thread/Coupling

Weight Calculator

How to calculate the weight

A53 GR.A Carbon Steel Pipe Weight Calculation Formula:

m = 10.68 (do – tw) tw

where

m = weight per foot (lb/ft)

do = outside diameter (inches)

tw = wall thickness (inches)


Schedule

Diameter Nominal Schedule Outside Diameter
– D –
(mm)		 Wall Thickness
– t –
(mm)		 Inside Diameter
– d –
(mm)		 Inside Area
(cm2)		 Pipe Weight
(kg/m)		 Water Weight
(kg/m)
(inches) (mm)
1/8 6 10S   10.3 1.245 7.811 0.479 0.277 0.048
Std 40 1.727 6.846 0.368 0.364 0.037
XS 80 2.413 5.474 0.235 0.468 0.024
1/4 8 10S   13.7 1.651 10.398 0.846 0.489 0.085
Std 40 2.235 9.23 0.669 0.630 0.067
XS 80 3.023 7.654 0.460 0.794 0.046
3/8 10 10S   17.145 1.651 13.843 1.505 0.629 0.151
Std 40 2.311 12.523 1.232 0.843 0.123
XS 80 3.2 10.745 0.907 1.098 0.091
1/2 15 5S   21.336 1.651 18.034 2.554 0.799 0.255
10S   2.108 17.12 2.302 0.997 0.230
Std 40 2.769 15.798 1.960 1.265 0.190
XS 80 3.734 13.868 1.510 1.617 0.151
  160 4.75 11.836 1.100 1.938 0.110
XXS   7.468 6.4 0.322 2.247 0.032
3/4 20 5S   26.67 1.651 23.368 4.289 1.016 0.429
10S   2.108 22.454 3.960 1.273 0.396
Std 40 2.87 20.93 3.441 1.680 0.344
XS 80 3.912 18.846 2.790 2.190 0.279
  160 5.537 15.596 1.910 2.878 0.191
XXS   7.823 11.024 0.954 3.626 0.095
1 25 5S   33.401 1.651 30.099 7.115 1.289 0.712
10S   2.769 27.863 6.097 2.086 0.610
Std 40 3.378 26.645 5.576 2.494 0.558
XS 80 4.547 24.307 4.640 3.227 0.464
  160 6.35 20.701 3.366 4.225 0.337
XXS   9.093 15.215 1.818 5.436 0.182
1 1/4 32 5S   42.164 1.651 38.862 11.862 1.645 1.186
10S   2.769 36.626 10.536 2.683 1.054
Std 40 3.556 35.052 9.650 3.377 0.965
XS 80 4.851 32.462 8.276 4.452 0.828
  160 6.35 29.464 6.818 5.594 0.682
XXS   9.703 22.758 4.068 7.747 0.407
1 1/2 40 5S   48.26 1.651 44.958 15.875 1.893 1.587
10S   2.769 42.722 14.335 3.098 1.433
Std 40 3.683 40.894 13.134 4.038 1.313
XS 80 5.08 38.1 11.401 5.395 1.140
  160 7.137 33.986 9.072 7.219 0.907
XXS   10.16 27.94 6.131 9.521 0.613
    13.335 21.59 3.661 11.455 0.366
    15.875 16.51 2.141 12.645 0.214
2 50 5S   60.325 1.651 57.023 25.538 2.383 2.554
10S   2.769 54.787 23.575 3.920 2.357
Std 40 3.912 52.501 21.648 5.428 2.165
XS 80 5.537 49.251 19.051 7.461 1.905
  160 8.712 42.901 14.455 11.059 1.446
XXS   11.074 38.177 11.447 13.415 1.145
    14.275 31.775 7.930 16.168 0.793
    17.45 25.425 5.077 18.402 0.508
2 1/2 65 5S   73.025 2.108 68.809 37.186 3.677 3.719
10S   3.048 66.929 35.182 5.246 3.518
Std 40 5.156 62.713 30.889 8.607 3.089
XS 80 7.01 59.005 27.344 11.382 2.734
  160 9.525 53.975 22.881 14.876 2.288
XXS   14.021 44.983 15.892 20.348 1.589
    17.145 38.735 11.784 23.564 1.178
    20.32 32.385 8.237 26.341 0.824
3 80 5S   88.9 2.108 84.684 56.324 4.5 5.632
10S   3.048 82.804 53.851 6.436 5.385
Std 40 5.486 77.928 47.696 11.255 4.770
XS 80 7.62 73.66 42.614 15.233 4.261
  160 11.1 66.7 34.942 21.240 3.494
XXS   15.24 58.42 26.805 27.610 2.680
    18.415 52.07 21.294 31.925 2.129
    21.59 45.72 16.417 35.743 1.642
3 1/2 90 5S   101.6 2.108 97.384 74.485 5.158 7.448
10S 40 3.048 95.504 71.636 7.388 7.164
Std 80 5.74 90.12 63.787 13.533 6.379
XS   8.077 85.446 57.342 18.579 5.734
XXS   16.154 69.292 37.710 33.949 3.771
4 100 5S   114.3 2.108 110.084 95.179 5.817 9.518
10S   3.048 108.204 91.955 8.340 9.196
    4.775 104.75 86.179 12.863 8.618
Std 40 6.02 102.26 82.130 16.033 8.213
XS 80 8.56 97.18 74.173 22.262 7.417
  120 11.1 92.1 66.621 28.175 6.662
    12.7 88.9 62.072 31.736 6.207
  160 13.487 87.326 59.893 33.442 5.989
XXS   17.12 80.06 50.341 40.920 5.034
    20.32 73.66 42.614 46.970 4.261
    23.495 67.31 35.584 52.474 3.558
5 125 5S   141.3 2.769 135.762 144.76 9.435 14.476
10S   3.404 134.492 142.06 11.545 14.206
Std 40 6.553 128.194 129.07 21.718 12.907
XS 80 9.525 122.25 117.38 30.871 11.738
  120 12.7 115.9 105.50 40.170 10.550
  160 15.875 109.55 94.254 48.973 9.426
XXS   19.05 103.2 83.647 57.280 8.365
    22.225 96.85 73.670 65.091 7.367
    25.4 90.5 64.326 72.406 6.433
6 150 5S   168.275 2.769 162.737 208.00 11.272 20.800
10S   3.404 161.467 204.77 13.804 20.477
    5.563 157.149 193.96 22.263 19.396
Std 40 7.112 154.051 186.39 28.191 18.639
XS 80 10.973 146.329 168.17 42.454 16.817
  120 14.275 139.725 153.33 54.070 15.333
  160 18.237 131.801 136.44 67.300 13.644
XXS   21.946 124.383 121.51 78.985 12.151
    25.4 117.475 108.39 89.258 10.839
    28.575 111.125 96.987 98.184 9.699
8 200 5S   219.075 2.769 213.537 358.13 14.732 35.813
10S   3.759 211.557 351.52 19.907 35.152
    5.563 207.949 339.63 29.217 33.963
  20 6.35 206.375 334.51 33.224 33.451
  30 7.036 205.003 330.07 36.694 33.007
Std 40 8.179 202.717 322.75 42.425 32.275
  60 10.312 198.451 309.31 52.949 30.931
XS 80 12.7 193.675 294.60 64.464 29.460
  100 15.062 188.951 280.41 75.578 28.041
  120 18.237 182.601 261.88 90.086 26.188
  140 20.625 177.825 248.36 100.671 24.836
  160 23.012 173.051 235.20 110.970 23.520
    25.4 168.275 222.40 120.994 22.240
    28.575 161.925 205.93 133.887 20.593
  • 1 cm2 = 10-4 m2 = 0.155 in2
  • 1 kg = 2.2046 lb
  • 1 m = 3.28 ft

Chart

A53 GR.A Carbon Steel Piping Chart & Outside Diameter Comparison

Dimension

Pipe dimensions are given in size and schedule number. Three different terms are commonly used to define the size of the pipes.

  • NPS – Nominal Pipe Size
  • NB – Nominal Bore
  • DN – Diameter Nominal

Carbon Steel A53 GR.A Pipe Dimension

Dimensions of the pipes are covered in following Standard

  • ASME B36.10 – Welded and Seamless Wrought Steel Pipe (Carbon & Alloy Steel)

ASTM A53 Carbon Steel Grade A Pipe Hardness :

Brinell hardness is the most widely used methods in carbon steel pipe hardness testing . This method uses the earliest, due to its imprint, and thus the hardness values ​​affected by the sample organization microsegregation ingredients uneven minimal impact, test results points sprinkle a small degree, good reproducibility, can objectively reflect the objective hardness of the material.

Packing of Carbon Steel A53 GR.A Pipes/Tubes :

Packing of High Quality Grade A Carbon Steel Pipes
Packing Of Carbon Steel A53 Gr A Pipes and Tubes
Packing Of ASTM A53 GR.A Seamless Pipes and Tubes
Packing Of ASTM A53 Grade A Pipes, Tubes

ASTM A53 GR.A Carbon Steel Pipes and Tubes Available Inventory :

Countries We Export Carbon Steel Grade A Pipes and Tubes:

India, Afghanistan, Belarus, Greece, Ecuador, Nepal, Lebanon, Mongolia, Chile, Peru, Russia, Israel, New Zealand, Lithuania, Sri Lanka, Argentina, Nigeria, Mexico, Australia, Hong Kong, Japan, Iraq, Bhutan, Ireland, Kenya, Mexico, Poland, Belgium, Bahrain, Namibia, United Arab Emirates, Bulgaria, Vietnam, United Kingdom, Egypt, Bangladesh, Switzerland, Germany, Italy, Ghana, Brazil, Croatia, Colombia, Oman, Iran, Philippines, Gambia, Estonia, Angola, Macau, Zimbabwe, Czech Republic, Iran, Qatar, Hungary, Malaysia, Bolivia, China, Denmark, Thailand, Libya, Tibet, Saudi Arabia, Romania, Pakistan, Kuwait, Norway, Costa Rica, Puerto Rico, France, Venezuela, Canada, Jordan, United States, Netherlands, Gabon, Finland, Slovakia, Turkey, Azerbaijan, Poland, Ukraine, Singapore, Trinidad & Tobago,Tunisia, Austria, Morocco, Portugal, South Africa, Taiwan, Sweden, Chile, Algeria, Serbia, Kazakhstan, Yemen, Indonesia, Nigeria, Spain, South Korea.

Cities We Export Grade A Carbon Steel Pipes and Tubes :

New York, Muscat, Calgary, Seoul, Sydney, Coimbatore, Rajkot, Tehran, Mexico City, Vung Tau, Kolkata, Jeddah, Aberdeen, Brisbane, Kuala Lumpur, Pune, Caracas, New Delhi, Dammam, Jaipur, Busan, Kanpur, Dallas, Hong Kong, Haryana, Kuwait City, Cairo, Houston, Chandigarh, Indore, Manama, Toronto, Faridabad, Karachi, Madrid, Jamshedpur, Surat, Colombo, Ranchi, Istanbul, Moscow, Vadodara, Melbourne, Granada, Lagos, Rio de Janeiro, Al Jubail, Ludhiana, Courbevoie, Mumbai, Pimpri-Chinchwad, Lahore, Thiruvananthapuram, Singapore, Port-of-Spain, Nagpur, Noida, Chennai, Riyadh, Los Angeles, Dubai, Bengaluru, Visakhapatnam, Ernakulam, Edmonton, Gurgaon, Chiyoda, Santiago, Geoje-si, Petaling Jaya, Ahvaz, Hyderabad, Thane, Gimhae-si, Bhopal, Perth, Baroda, Atyrau, Abu Dhabi, Algiers, Al Khobar, Bangkok, La Victoria, Milan, Montreal, Ulsan, Navi Mumbai, Howrah, Ahmedabad, Secunderabad, Bogota, Ho Chi Minh City, Sharjah, Hanoi, Ankara, Doha, Jakarta, London, Nashik.

People also look for :

black carbon steel pipe, high temperature seamless pipe astm a53 gr.a, a53/sa53 erw pipes, a53 ibr approved pipe, astm a53 cold drawn seamless pipe, high quality a53/sa53 carbon steel pipe/tube, asme sa / astm a53 gr.a carbon steel erw pipe, a53/sa53 gr.a carbon steel seamless pipes, carbon steel astm a53 gr.a welded pipes, carbon steel ibr pipes, 200nb sch 80 a53 grade a pipe exporter

astm a53/asme sa53 seamless line pipes, astm a53 grade a carbon steel tubing exporter, astm /asme sa53 gr.a carbon steel pipes beveling stockiest, astm a53/ asme sa 53 welded line pipes stockholder, a53/sa53 grade a carbon seamless polishing pipes, astm a53 gr.a pipe in 150nb schedule xxs, astm a53 grade a carbon steel seamless tube dealer

a53 carbon steel pipe, astm a53 gr. a carbon steel pipes, a53/sa53 pipe, a53/sa53 tube, schedule 160 steel pipe astm a53, astm a53 gr.a in sch 40, seamless and welded black and hot dipped galvanized steel pipe, heavy wall carbon seamless steel pipe astm a53 gr.a, erw steel pipe carbon steel material, asme sa53 grade a carbon steel pipes/ tubes supplier
